Over Avantis
De Avantis is de derde 96KHz mixer van Allen & Heath. De familie wordt steeds completer waarbij de Avantis zich positioneert tussen de SQ en dLive systemen.
Avantis is een 64 channel / 42 configurable bus systeem, met dubbele Full HD touchscreens, uitgebreide I/O opties and processing direct afkomstig uit de dLive. Door een modern metalen exoskelet zeer licht en toch roadproof sterk.

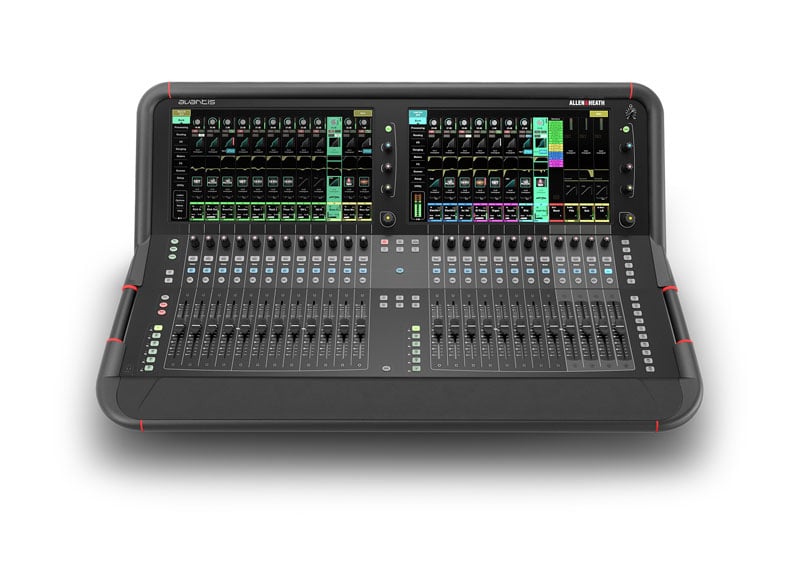

Avantis Mixer
Verpakt in een modern, licht en roadproof metalen exoskelet biedt Avantis de beste features en sound in zijn klasse.
Local I/O: 12 XLR analogue inputs, 12 XLR analogue outputs, plus AES (Stereo In, 2x Stereo Out). Twee I/O Ports bieden ruimte aan het volledige gamma dLive option cards, inclusief Dante (64×64 and 128×128), Waves, gigaACE, MADI en meer, Hierdoor is uitbreiding met het ‘everything I/O’ concept en simpele integratie een groot voordeel.
Avantis zit vol met processing tools ontworpen voor veeleisende gebruikers: compressors, EQs en Allen & Heath’s veelgeprezen RackExtra FX units (12 slots). Een optionele upgrade naar dPack breidt Avantis uit met beroemde dLive processing waaronder de the Dyn8 dynamics engine (tot 16 instances), DEEP Compressors en de Dual-Stage Valve preamp. dPack gebruikers ontvangen daarnaast automatisch gratis toekomstige DEEP and FX updates.
Complete your system
Voor vrijwel elke toepassing biedt Allen & Heath een oplossing, decentraal mobiel en ingebouwd.
GX4816 I/O expander
- 48in/16out
- 2 x DX expander ports
- 96 kHz
- dLive preamps/converters

DX102
- 12 XLR outputs
- 5-8 or 9-12 switchable to AES
(44.1-96 kHz) - Cascade or redundant mode

DX164-W
- Wall Mount or Dip Trap
- 16 Mic Preamps on with LEDs
- 4 balanced XLR Line Outs
- Locking EtherCon ports
- Fits standard 12×12 NEMA backbox

DX32
- 4x 8ch modular design
- Redundant, hot swappable PSU
- Dual redundant Cat5 link to Surface or MixRack
- Rack-mounted/shelf /floor possible

DX168
- 16 Mic Preamps with LEDs
- 8 XLR Line Outs
- Add 6 DX168 units for 96 in/48 out
- Cascade mode for daisy-chaining of 2 DX168 Expanders

DX-HUB
- Compatible with dLive systems fitted with a gigaACE I/O module
- 4 DX Link ports connect to DX Expanders
- Locking etherCON connectors
- Compatible with DX32,168 and 164 expanders

DT168
- Dante audio expander, 96/48kHz
- Portable stagebox design
- 16 mic preamps on XLR
- 8 XLR line outputs
- Primary and Secondary ports with locking EtherCon

DT164-W
- Dante audio expander, 96/48kHz
- Wall mount or floor pocket installation
- 16 mic pre, 4 XLR line outputs
- Primary and Secondary ports with locking EtherCon

Cards: connect your system
Perfectioneer en customize uw setup met de option cards, te gebruiken in diverse surfaces en racks.
Dante 64×64
- 64 bidirectional channels of Dante I/O at 96kHz or 48kHz
- Up to 5x superDANTE w/ dLive S Class, 2x super w/ dLive C Class
- Plug and play operation
- Use off the shelf network hardware

Dante 128×128
- 128 bidirectional channels of Dante I/O at 96kHz or 48kHz
- Up to 5x superDANTE w/ dLive S Class, 2x w/ dLive C Class
- Plug and play operation
- Use off the shelf network hardware

Giga Ace
- 128 in, 128 out
- 96kHz sample rate
- Ultra-low transport latency – 5 samples (52 us)
- Dual redundancy
- Switchable Control Network Bridge

Fibre Ace
- 128 in, 128 out
- 96kHz sample rate
- 3 modes of operation: Copper/Fibre/Convert
- Ultra-low transport latency – 5 samples (52us)
- Dual redundancy
- Switchable Control Network Bridge

Waves 3
- 128 in, 128 out
- Switchable 48/96kHz sample rate
- Waves SoundGrid networking
- Multitrack rec/playback
- Integrated 3-port Ethernet switch
- Input sharing with Waves V2 and V3

Super Madi
- 8x BNC (4 links)
- 8x SFP slots* (mod.not included)
- Switchable sample rate per link 48/96kHz
- Switchable redundancy per pair
- 128 I/O on coaxial at 96kHz
- 128 I/O on optical at 96kHz
- Choice of Smux or HighSpeed 96kHz mode

AES3
- Choice of AES3 cards
- 4in 6out (M-DL-AES4I6O-A)
- 10out (M-DL-AES10O-A)
- 6in 4out (M-DL-AES6I4O-A)
- 2in 8out (M-DL-AES2I8O-A)
- Switchable sample rate (96kHz, 88.2kHz, 48kHz and 44.1kHz)
- Input SRC 32kHz to 192kHz

Remote controllers: expand and control your system
de IP controllers zijn exclusief ontworpen voor en door Allen & Heath. Zowel mobiel als ingebouwd te gebruiken bieden de IP controllers uitbreiding op de mobiele set of decentrale controle van een geinstalleerd systeem.
IP 1
- Music source selection, level control, or preset recall
- Dual function rotary encoder
- LCD Display
- Two form variants: US and EU
- TCP/IP & POE compliant

IP 6
- 6 Push n Turn Rotary encoders
- 6x Layers
- PoE or external 12V PSU (supplied)
- Optional mic stand and headphone holder

IP 8
- 8 Motorised faders
- 6x Layers
- PoE+ or external 12V PSU (supplied)
- Use freestanding or mount in a plinth, podium or furniture
